BALL JET DIFFUSER (BJD)

DESCRIPTION:

The series of Ball Jet Diffuser (BJD) are designed for any application requiring a high performance diffuser, used where air diffusion is required to travel a long distance to the directed area. This is the case in large rooms (halls, cinema, theatre, assembly rooms, etc) particularly when air distribution via ceiling diffusers is not practical. Typically jet diffusers are arranged in the side wall areas.

The direction of the air stream from the jet diffuser can be easily adjusted manually to suit particular on site conditions.

The wide range of designs available, the flexibility in adapting to local conditions and compliance with low noise requirements mean that jet diffuser can be used in almost any air conditioning system.

Ask For Quotation

Features:

  • Material: Aluminium.
  • Construction: Ball is adjusted freely inside frame for better maneuverability.
  • Powder Coating Colour: RAL 9010, RAL 9016 or customised.
  • Cores: Non-removable.
  • Optional: Round damper (RD).

Alias:

  • Ball Jet Diffuser
  • Eye Jet Diffuser

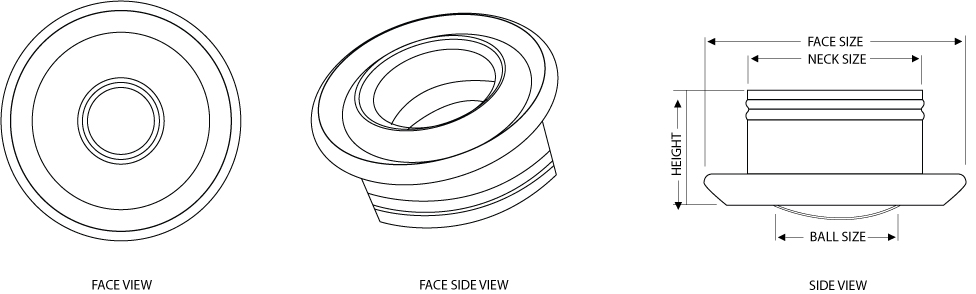

Diagram:

Technical Data:

ITEMNECK SIZEFACE SIZEHEIGHT
BJD4Ø98Ø14080
BJD5Ø123Ø170100
BJD6Ø148Ø200113
BJD8Ø197Ø266143
BJD10Ø248Ø315180
