GRAVITY LOUVER (GL)

DESCRIPTION:

Aluminum Gravity Louvers (GL) grilles are intended for exhaust ventilation systems and used as a non-return air valve for automated closing of openings and switching off the ventilator.

Grilles are fitted with easily rotating aluminum louvers, mounted in a frame. Louvers are installed in such a way that when the ventilator is switched off they are closed by gravity. Grilles are mounted in air ducts by means of spring-loaded clamps fitted on side walls of grilles.

Ask For Quotation

Features:

  • Material: Aluminium extruded profile frame, aluminium louver.
  • Construction: fitted with easily rotating aluminum louvers, mounted in a frame.
  • Powder Coating Colour: RAL 9010, RAL 9016 or customised.
  • Cores: Non-removable.
  • Frame: Bevel face or louver face.

Alias:

  • Gravity Louver
  • Sand Trap Louver

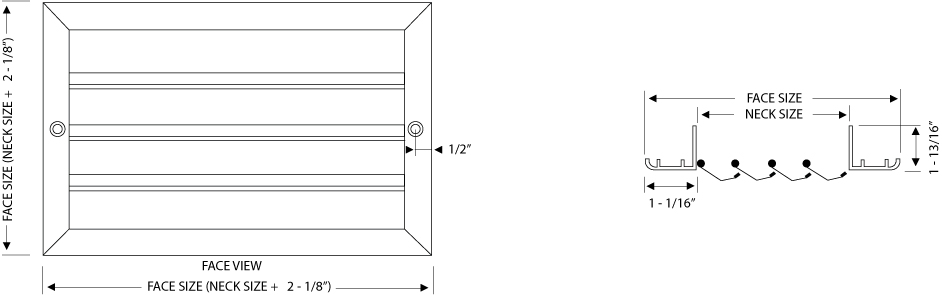

Diagram:

Technical Data:

ITEMNECK SIZEFACE SIZEHEIGHT
GL6145*145195*19545
GL8195*195245*24545
GL10245*245295*29545
GL12295*295345*34545
