DISK VALVE (SDV & EDV)

DESCRIPTION:

Air Guide’s disk valve comes in to two categories; namely Supply Disk Valve (SDV) and Exhaust Disk Valve (EAV), both can exhaust and supply air but with SDV ergonomics it is preferred to be used as air supply device whereas with EAV ergonomics it is recommended to use it for air extraction purposes. Both disk valves comes with adjustable core to guage air as per requirement.

Ask For Quotation

Features:

  • Material: Aluminium or MS.
  • Construction: Core has bar, screw tightened, in addition of welded joints, frames are bevel shape welded with core’s bar.
  • Powder Coating Colour: RAL 9010, RAL 9016 or customised.
  • Cores: Removable.
  • Optional: Round damper (RD).

Alias:

  • Supply Disk Valve
  • Exhaust Disk Valve
  • Disk Valve
  • Disk Diffuser

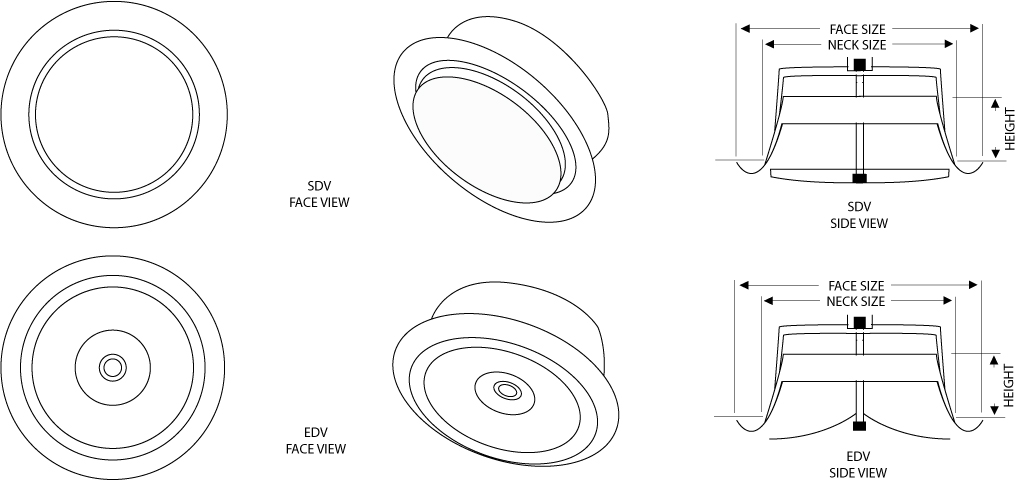

Diagram:

Technical Data:

ITEMNECK SIZEFACE SIZEHEIGHT
SDV/EDV4Ø98Ø12380
SDV/EDV5Ø123Ø153100
SDV/EDV6Ø148Ø183113
SDV/EDV8Ø197Ø237143
SDV/EDV10Ø248Ø293180
