TILE SQUARE DIFFUSER (TSQ)

DESCRIPTION:

Tile Square Diffuser (TSD) is manufactured in a way that is easily integrated into modular ceilings with tile being attached to a diffuser therefore it removes hassle of cutting necks separately and adjust automatically to required tile ceiling size. The Air Guide range of Tile Square Diffuser (TSD) is designed to provide excellent directional performance typically in a 4 way air flow pattern.

Tile diffuser incorporates a smaller face to allow air diffusion through it and is used in surface mount ceiling applications where minimum ceiling smudging is required. Cores are generally removable.

Also it comes in option of 1, 2, 3 & 4 way airflow patterns.

Ask For Quotation

Features:

  • Material: Extruded aluminium profile cores, frame could be of steel or aluminium.
  • Construction: Frames have punched in corners, in addition to welded joints.
  • Powder Coating Colour: RAL 9010, RAL 9016 or customised
  • Cores: Removable.
  • Optional: Opposite Blade Damper (OBD-AG).

Alias:

  • Tile Diffuser
  • Square Tile Diffuser

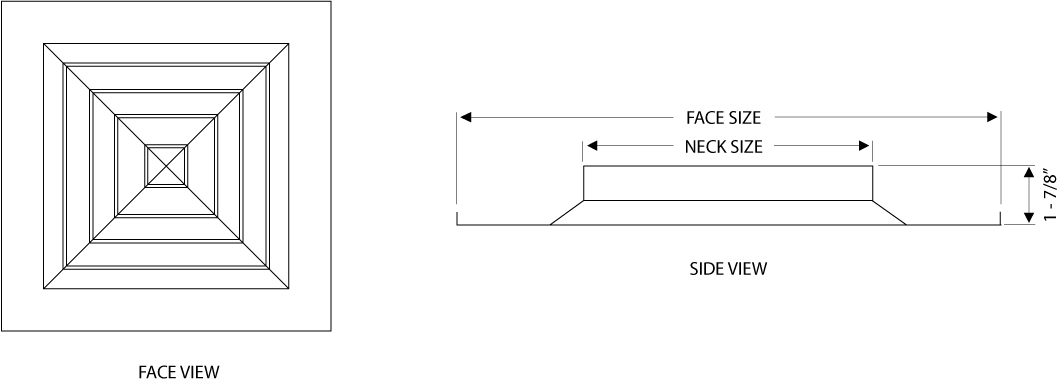

Diagram:
