JET DIFFUSER (JD)

DESCRIPTION:

The series of Jet Diffuser (JD) are designed for any application requiring a high performance diffuser, used where air diffusion is required to travel a long distance to the directed area. This is the case in large rooms (halls, cinema, theatre, assembly rooms, etc) particularly when air distribution via ceiling diffusers is not practical. Typically jet diffusers are arranged in the side wall areas.

The direction of the air stream from the jet diffuser can be easily adjusted manually to suit particular on site conditions.

The wide range of designs available, the flexibility in adapting to local conditions and compliance with low noise requirements mean that jet diffuser can be used in almost any air conditioning system.

Ask For Quotation

Features:

  • Material: Steel or aluminium
  • Construction: Cores have bar screw tightened on each endstrong reliability.
  • Powder Coating Colour: RAL 9010, RAL 9016 or customised
  • Cores: Non-removable.
  • Optional: Butterfly damper (BD), radial blade damper (RBD).

Alias:

  • Jet Diffuser
  • Nozzle Jet Diffuser
  • Nozzle Diffuser

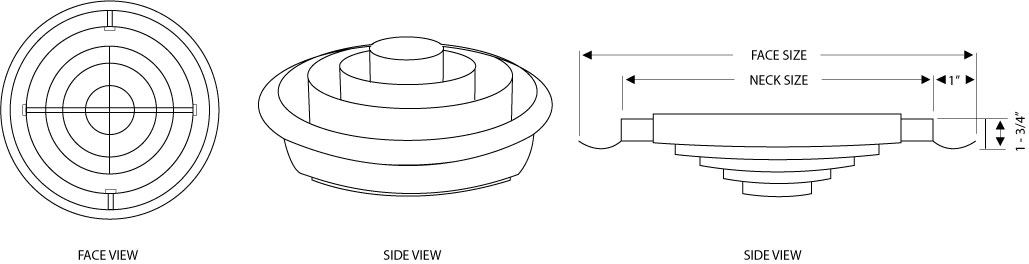

Diagram:

Technical Data:

ITEMNECK SIZEFACE SIZEHEIGHT
JD6Ø145Ø19545
JD9Ø220Ø27045
JD12Ø295Ø34545
JD15Ø370Ø42045
JD18Ø445Ø49545
