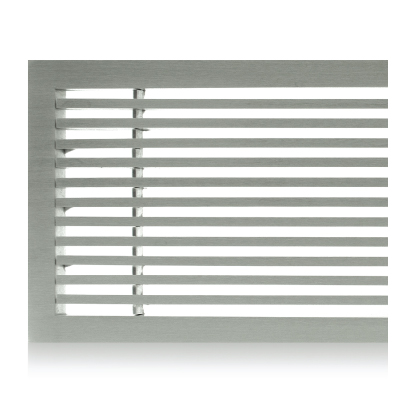

LINEAR BAR GRILLE (LBG)

DESCRIPTION:

Air Guide's Linear Bar Grille (LBG) can be used as supply and exhaust air device and are capable of high air volume performance. With a low resistance they are ideal for use in ceiling mounted fan coil units, as well as for the side walls and floors. They are made of aluminium extruded profile ensuring best reliability.

Configurations available are 0° and 15° to which blades are patterned upon.

Ask For Quotation

Features:

  • Material: Aluminium extruded profile.
  • Construction: Set of individually linear bars held in place by pipe going through it and nut tightened on each end.
  • Powder Coating Colour: RAL 9010, RAL 9016 or customised.
  • Cores: Non-removable.
  • Optional: Opposite Blade Damper (OBD-AG).

Alias:

  • Linear Grill
  • Linear Slot

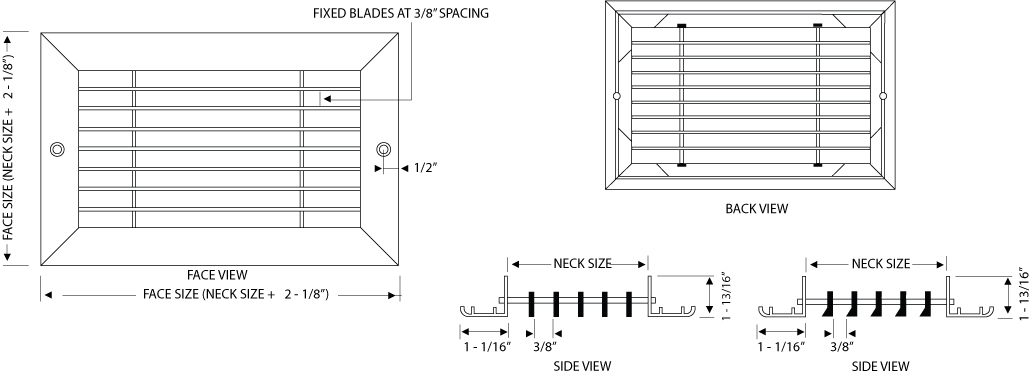

Diagram:

Technical Data:

ITEMNECK SIZEFACE SIZEHEIGHT
LBG6145*145195*19545
LBG8195*195245*24545
LBG10245*245295*29545
LBG12295*295345*34545
