DOUBLE DEFLECTION GRILLE (DDG)

DESCRIPTION:

The series of Double Deflection Grille (DDG) with two banks of individually adjustable blades, Series DDG are more suited to supply applications than their Single Deflection (SDG) cousins. Just like SDG grilles though, Double Deflection grilles are suitable for a wide range of settings, including ceilings, walls and on ductwork.

The two rows of blades are set at 90 degrees to each other, with one row set just behind the front most row. Gaps between the blades are sufficient to allow easy adjustment of blades, enabling custom blow patterns to be created. Whether these be targeted towards one area, or fanned out to affect a wide area.

Ask For Quotation

Features:

  • Material: Aluminium extruded profile.
  • Construction: Set of individually adjustable blades held in place by high tensile spring wire.
  • Powder Coating Colour: RAL 9010, RAL 9016 or customised.
  • Frames: Bevel face or flat face.
  • Cores: Non-removable.
  • Optional: Opposite Blade Damper (OBD-AG).

Alias:

  • Double Deflection Grill
  • Supply Grill
  • Supply Air Register

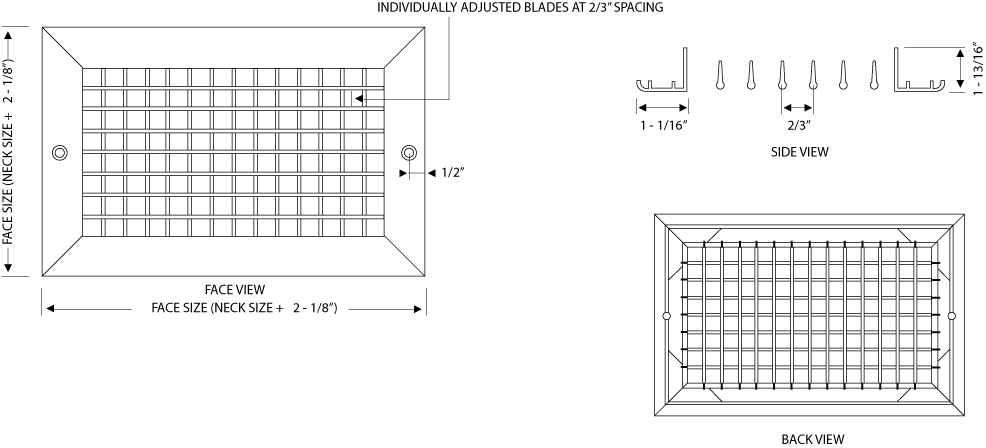

Diagram:

Technical Data:

ITEMNECK SIZEFACE SIZEHEIGHT
DDG6145*145195*19545
DDG8195*195245*24545
DDG10245*245295*29545
DDG12295*295345*34545
DDG15375*375425*42545
DDG18450*450500*50045
