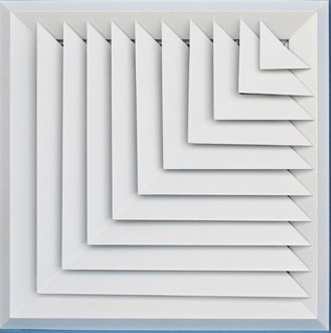

LOUVRE FACE DIFFUSER (LFD)

DESCRIPTION:

The Air Guide range of square air diffuser is designed to provide excellent directional performance typically in a 4 way air flow pattern.

The Louvre Face Diffuser (LFD) is generally flush mounted to the ceiling line. This frame style is extremely versatile and is ideal for a lay-in application where the diffuser is placed into a T-bar ceiling grid.

The Louvre Face Diffuser (LFD) may be used in place of a modular ceiling tile without any need arising to alter the T-bar construction. It is easy for installation with its removable core and OBD if needed. Removable snap-in directional cores for diffusion patterns provide easy
access to accessories and connecting duct.

Also it comes in option of 1, 2, 3 & 4 way airflow patterns.

Ask For Quotation

Features:

  • Powder Coating Colour: RAL 9010, RAL 9016 or customised.
  • Cores: Removable.
  • Optional: Aluminium No. 07 Damper (OBD Bearing Type).

Alias:

  • Supply Air Diffuser
  • Return Air Diffuser
  • Diffuser

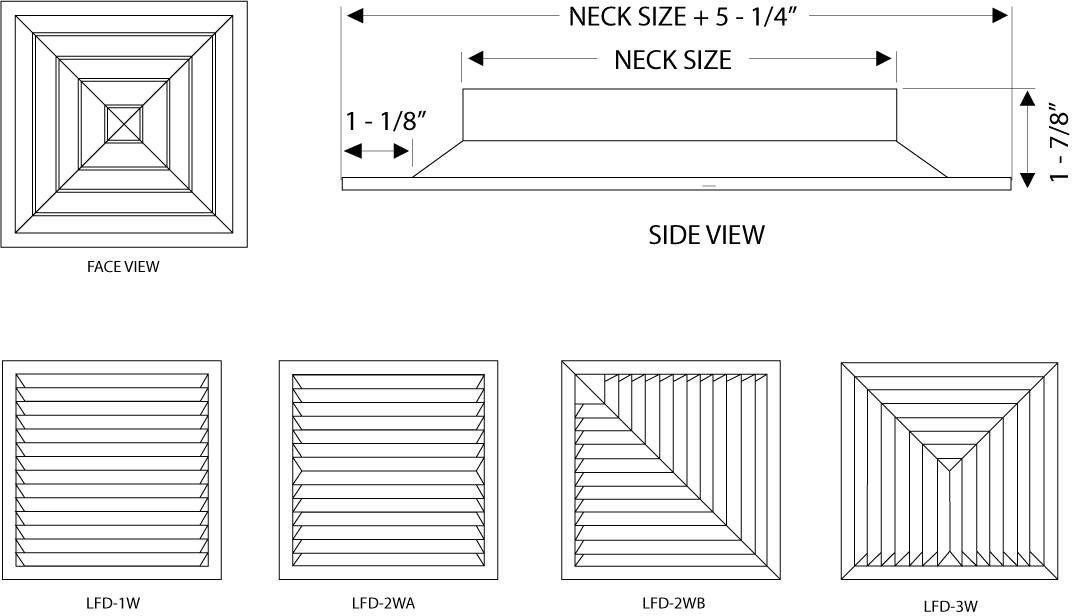

Diagram:

Technical Data:

ITEMNECK SIZEFACE SIZEHEIGHT
LFD-6145*145278*27847
LFD-9220*220353*35347
LFD-12295*295428*42847
LFD-15370*370503*50347
LFD-18445*445578*57847
