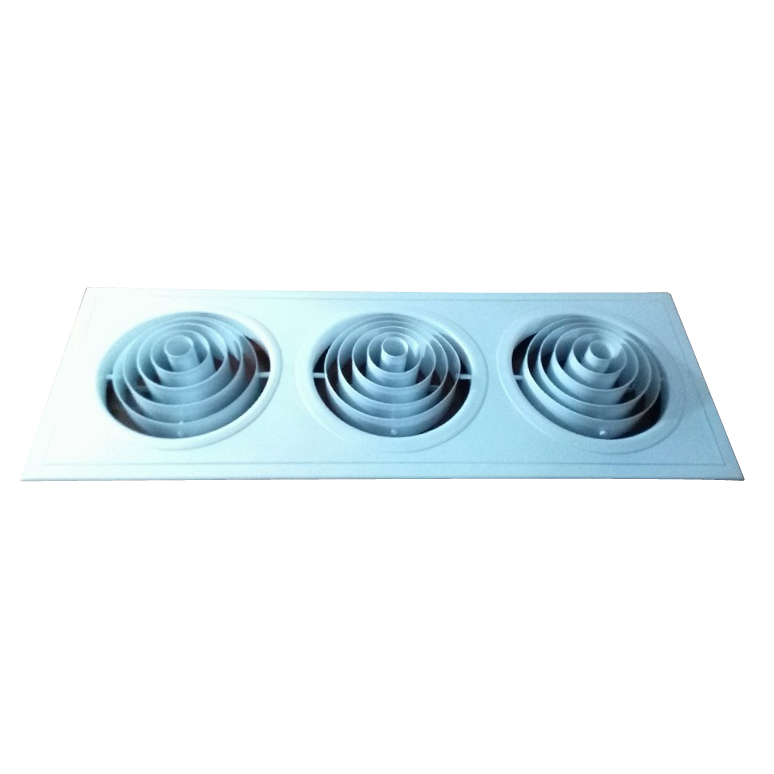

ELEMENT JET DIFFUSER (EJD)

DESCRIPTION:

The series of Element Jet Diffuser (EJD) are manufactured in a style where one or more jet diffusers are assembled in a single tile formatted frame to thrust air stream on various directed areas. It is designed for any application requiring a high performance diffuser, used where air diffusion is required to travel a long distance. Typically jet diffusers are arranged in the side wall areas.

The direction of the air stream from the jet diffuser can be easily adjusted manually to suit particular on site conditions.

The wide range of designs available, the flexibility in adapting to local conditions and compliance with low noise requirements mean that jet diffuser can be used in almost any air conditioning system.

Ask For Quotation

Features:

  • Material: Aluminium or G.I. sheet.
  • Construction: Cores have bar, screw tightened, in addition of welded joints, also it is attached into a bevel shape frame.
  • Powder Coating Colour: RAL 9010, RAL 9016 or customised
  • Cores: Non-removable.
  • Optional: Butterfly damper (BD), radial blade damper (RBD).

Alias:

  • Element Jet Diffuser
  • Panel Jet Diffuser

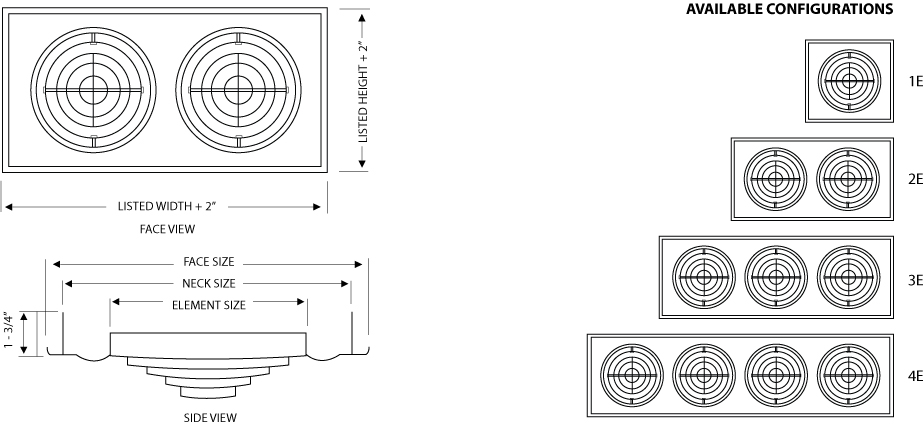

Diagram:

Technical Data:

ITEMLISTED HEIGHTLISTED WIDTH - 1ELISTED WIDTH - 2ELISTED WIDTH - 3ELISTED WIDTH - 4E
EJD69 3/49 3/418 3/427 3/436 3/4
EJD811 3/411 3/422 3/433 3/444 3/4
EJD1013 3/413 3/426 3/439 3/452 3/4
EJD1215 3/415 3/430 3/445 3/460 3/4
EJD1417 3/417 3/434 3/451 3/468 3/4
