BEVEL FACE DIFFUSER (BFD)

DESCRIPTION:

The Air Guide range of square air diffuser is designed to provide excellent directional performance typically in a 4 way air flow pattern.

Series of Bevel Face Diffuser (BFD) incorporates a bevel face frame and is used in surface mount ceiling applications where minimum ceiling smudging is required. Removable snap-in directional cores for diffusion patterns provide easy access to accessories and connecting duct and are interchangeable in the field in same in any margin style.

Also it comes in option of 1, 2, 3 & 4 way airflow patterns.

Ask For Quotation

Features:

  • Material: Extruded aluminium profile.
  • Construction: Frames have punched in corners, in addition to welded joints. Cores are removable with bar welded support on each corner.
  • Powder Coating Colour: RAL 9010, RAL 9016 or customised.
  • Cores: Removable.
  • Optional: Aluminium No. 07 Damper (OBD-AG).

Alias:

  • Supply and Return Air Diffuser
  • Air Diffuser
  • Bevel Face Diffuser

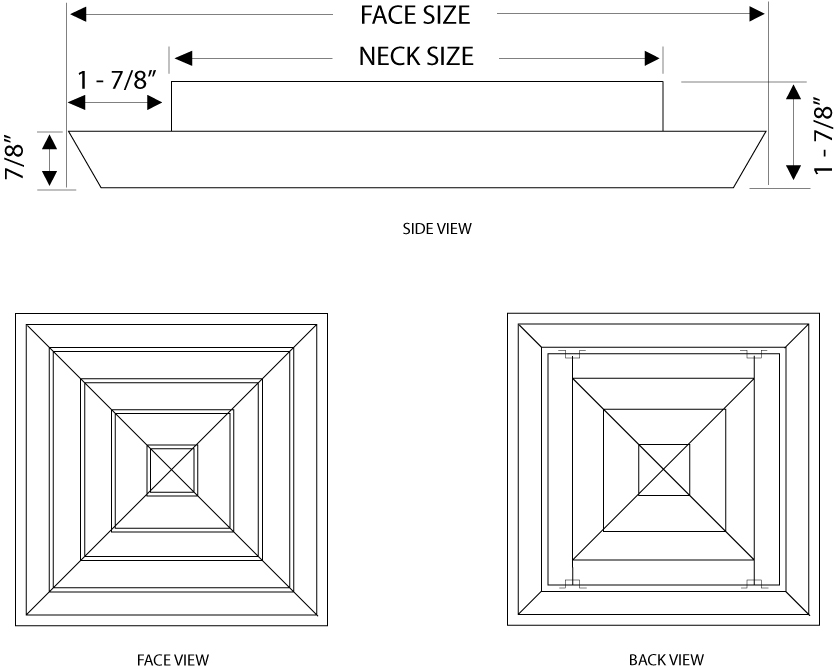

Diagram:

Technical Data:

ITEMNECK SIZEFACE SIZEHEIGHT
BFD-6145*145240*24047
BFD-9220*220315*31547
BFD-12295*295390*39047
BFD-15370*370465*46547
BFD-18445*445540*54047
