SINGLE DEFLECTION GRILL (SDG)

DESCRIPTION:

The series of Single Deflection Grille (SDG) incorporates a single bank of individually adjustable blades, Single Deflection grilles are a step up from supply units like air valves. Able to handle much larger air volumes, and
with the adjustable blades enabling throw to be directed anywhere in a single plane.

With an aerodynamic design creating minimal turbulence, the fully extruded aluminium blades of Single Deflection Grilles allow throw adjustment, whilst keeping noise and pressure drops to a minimum. When being used for extract this result in the advantages of being able
to handle greater air volumes.

Ask For Quotation

Features:

  • Material: Aluminium Extruded Profile
  • Construction: Set of individually adjustable blades held in place by high tensile spring wire.
  • Powder Coating Colour: RAL 9010, RAL 9016 or customised.
  • Frames: Bevel face or flat face.
  • Cores: Non-removable.
  • Optional: OBD bearing type damper.

Alias:

  • Return Grill
  • Single Louver Grill
  • Single Deflection Grill

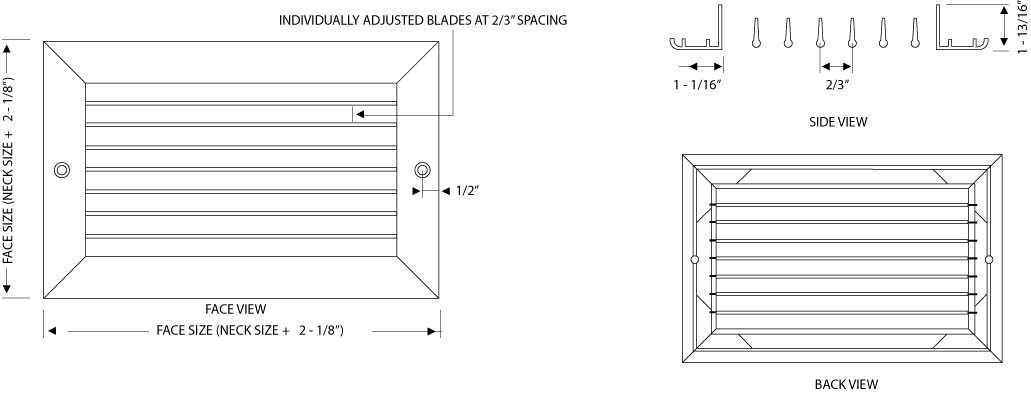

Diagram:

Technical Data:

ITEMNECK SIZEFACE SIZEHEIGHT
SDG6145*145195*19545
SDG8195*195245*24545
SDG10245*245295*29545
SDG12295*295345*34545
SDG15375*375425*42545
SDG18450*450500*50045
